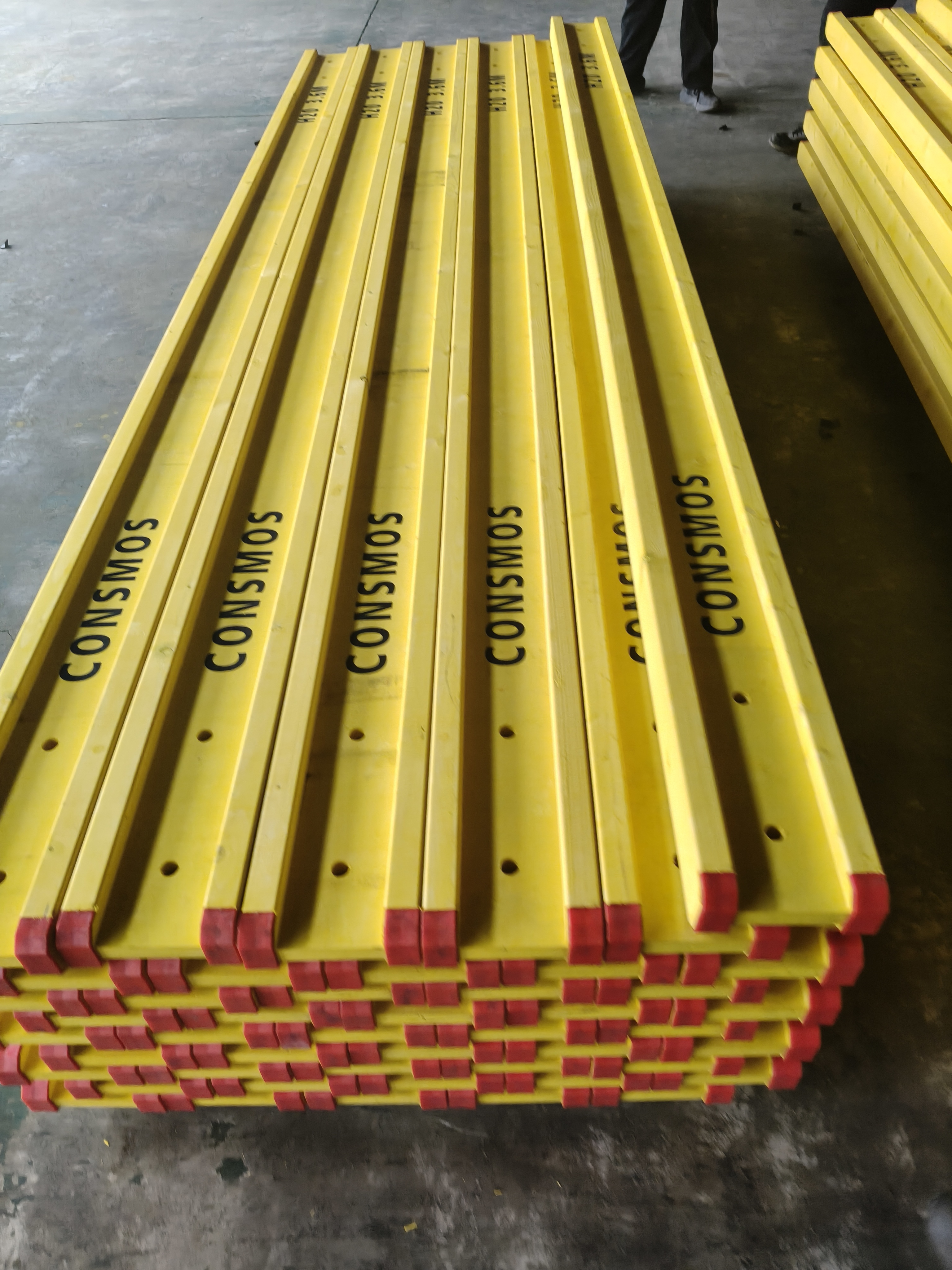

The Consmos H20 H‑beam is a purpose‑built engineered timber beam that has become the global standard in concrete formwork and fals

ework systems. Its distinctive “H” profile and

200 mm nominal height deliver an exceptional strength‑to‑weight ratio, making it the preferred choice for slab, wall, column, and bridge fo

rmwork on projects of all sizes.

Manufactured from high‑grade solid timber or Laminated Veneer Lumber (LVL) flanges, bonded to a multi‑layer plywood or LVL web with w

aterproof structural adhesive, the Consmos H

20 beam offers outstanding bending resistance and long‑term durability. The exposed surfaces are sealed with weather‑resistant yellow pa

int, and the ends are fitted with protective pla

stic or metal caps to prevent moisture ingress and impact damage during site handling.

Key dimensions include a flange width of 80 mm, a flange thickness of 40 mm, and a web thickness of 27–30 mm. Standard lengths range fr

om 1.8 m to 5.9 m, with custom sizes available

on request. At only 4.8–5.6 kg per linear metre, the beam is remarkably easy for crews to lift, position, and reposition, reducing labour time

and improving job‑site safety.

Beyond its physical robustness, the Consmos H20 beam is designed for reusability. With proper care, it can withstand dozens of pours, offe

ring excellent lifecycle value. Its compatibility

with all major formwork accessories – such as couplers, clamps, and spanning supports – ensures seamless integration into existing system

s. Moreover, as a wood‑based product, it is m

ore sustainable than steel alternatives, contributing to greener construction practices.

Whether you are forming high‑rise residential floors, heavy civil structures, or custom architectural slabs, the Consmos H20 H‑beam deliver

s proven performance, reliability, and econom

y. Choose Consmos H20 – the beam that builders trust worldwide.
